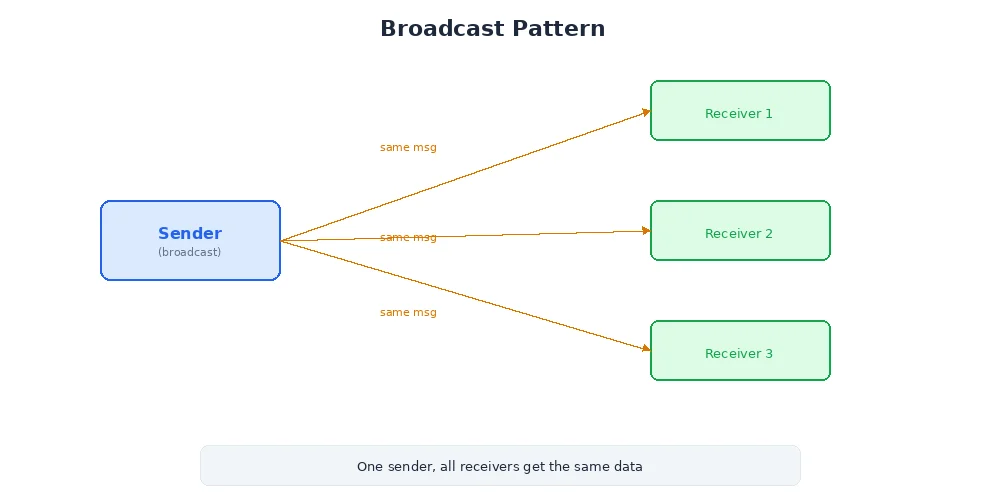

Point-to-Point vs Broadcast

Pub/sub is a broadcast pattern — one publisher, many listeners. But not all communication fits this model. Sometimes you need to ask a specific node a question and wait for an answer.

Two Patterns, Two Use Cases

When to Use Pub/Sub

Use pub/sub when:

• Data flows continuously (sensor readings, motor commands)
• Multiple consumers need the same data
• The producer doesn't care who is consuming
• You want fire-and-forget semantics

Examples: camera images, LiDAR scans, velocity commands, robot pose, map updates.

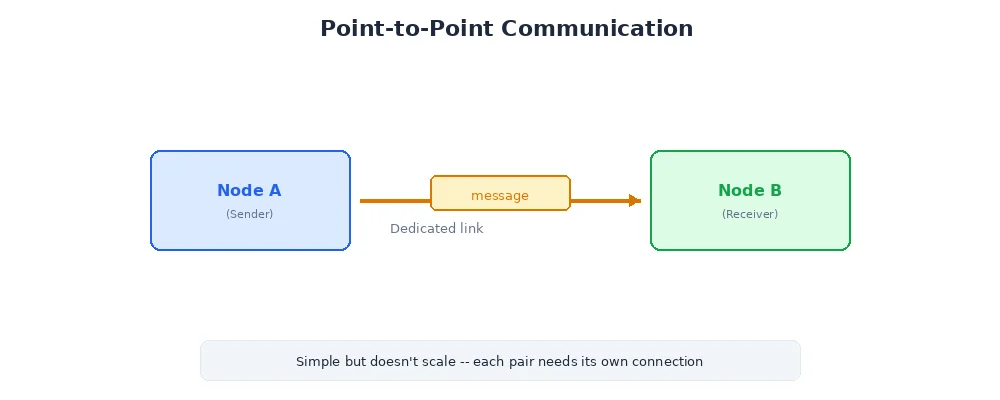

When to Use Request-Response

Use request-response (also called services) when:

• You need a one-time computation (plan a path from A to B)
• You need to query state (what are the current joint positions?)
• You need to change configuration (set the maximum speed to 2.0 m/s)
• The caller needs to wait for the result before proceeding

Examples: path planning request, parameter changes, calibration triggers, map saves.

# Path planning service (server side)
def handle_plan_request(request):
    start = request.start_pose
    goal = request.goal_pose
    path = a_star(start, goal, map)
    return PlanResponse(path=path, success=True)

service = create_service(
    name="/planning/plan_path",
    type=PlanService,
    handler=handle_plan_request
)

# Navigation node (client side)
client = create_client("/planning/plan_path", PlanService)
response = client.call(PlanRequest(
    start_pose=current_pose,
    goal_pose=target
))
# Blocks until the path planner responds
path = response.path

The Hybrid Approach

Real robots use both patterns together:

Continuous data (pub/sub):
  Camera → /camera/rgb → Detector → /objects
  LiDAR → /lidar/scan → Mapper → /map
  Controller → /cmd_vel → Motors

One-off requests (services):
  Navigation ← "plan path A→B" → Path Planner
  CLI ← "save map to disk" → Map Saver
  Config ← "set max speed" → Controller

The rule of thumb: if data flows continuously, use pub/sub. If you're asking a question, use a service.

Common Pitfalls

Using services for streaming data

Don't request camera images one at a time through a service. Each call has overhead, and you lose the decoupling benefits. Use pub/sub instead.

Using pub/sub for configuration

Publishing a "set speed" message to a topic seems convenient but has problems:

• How do you know it was received?
• What if multiple nodes try to set different speeds?
• How do you query the current value?

A service call gives you a response confirming the change succeeded.

Mixing blocking and real-time

If your 100Hz control loop calls a service that takes 50ms to respond, your loop drops to 20Hz. Never put blocking service calls in time-critical loops. Either use them in a separate thread or cache the result.

What's Next?

We've seen how nodes can exchange data through pub/sub and services. But what exactly is inside those messages? In the next lesson, we'll look at message types — how data is structured, serialized, and validated.
